TUNLAND

Drive Beyond Borders.

PASSENGER VEHICLES - TUNLAND

CONFIGURATIONS

Diversity versions for your reference



 Engine Cummins F2.8-120/130KW
 Power 85-96-120-130/3600kw
 Torque 360/1800~3600、365/1600~3200N.M
 Displacement 2776ml
 Fuel Diesel
 Driving Types 4*4/4*2
 Overall Sizes 5310*1880*1860
 Gearbox 5MT/6AT
All Configuration

FEATURES

EXTERIOR

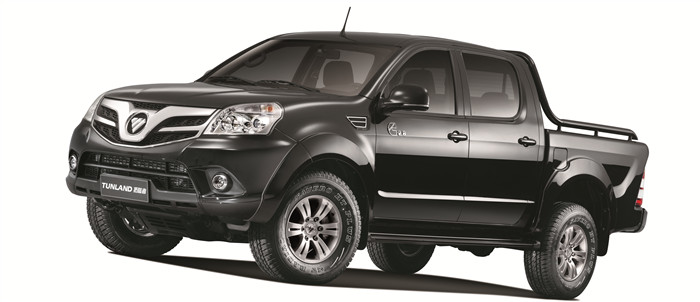

Wing-shaped grille with crystal diamond headlight, all which will give you a different, and impressive visual experience.

grille
head light
Grille
Lamp

INTERIOR

POWER

TUNLAND’s excellent-equipped dynamic system is powerful and reliable, not only fuel saving and emission reductive, but also ensuring stability, allowing you fully enjoy the passion and taking you beyond the limits.

  • ZF 6AT Gearbox
  • Mechatronic (integrated transmission control)
  • ASIS – adaptive shifting strategy
  • High power-to-weight ratio (based on Lepelletier gear set characteristics)
  • ISF 2.8 diesel engine offers advanced thermal engineering, electronic integration, High Pressure Common Rail fuel system and wastegated turbocharger, which is ideal for light commercial vehicle applications.
  • POWER: 107 – 160 hp
  • TORQUE: 206 – 265 ft-lb
  • CERTIFICATION: EURO 3
  • Excellent fuel saving and reliability, including the lightweight, integrated, and modular design
  • The development concept of efficient combustion by double VVT and four valves
  • The application of advanced electronic control technology
  • The maintenance-free chain drive and the passing of over 10,000-hour national endurance test.
  • ZF 6AT Gearbox
  • Mechatronic (integrated transmission control)
  • ASIS – adaptive shifting strategy
  • High power-to-weight ratio (based on Lepelletier gear set characteristics)

SAFER

tunland-safe-1
Body StructureHigh-strength body structure meets C-NCAP 4-Star collision standards
tunland-safe-2
Safety BeltsAnti-collision crumple frame structure Collapsible steering column, passenger-side dual airbags Tightening safety belts
tunland-safe-3
Safer SystemBosch four-channel ABS+EBD system. Rear-axle LSD non-slip differential lock.
20190114173335_product_35_51765721
International Collision Standard DesignTakumi who take the initiative to protect the safety of the purpose of the foundation to create the top safety performance, the use of high-rigidity body design pursuit of high-level crash safety protection

Body Structure

High-strength body structure meets C-NCAP 4-Star collision standards

RELIABLE OFF-ROAD

All-terrain ability Chassis height 210 mm. Wading Depth reaches 600 mm. Maximum Grade ability 60%. Sideslip angle 40 degree.

Stability The whole vehicle accumulatively passes the reliable test of 1.6 million kilometers’ atrocious conditions, including the high temperature, high cold, and plateau test and the 160,000 kilometers’ national discharge endurance appraisal.

Excellent task ability Top Speed 160 km/h Maximum Towing Capacity 2500 Kg Maximum loads 1500 Kg
